Every owner and team leader in a sheet metal bending workshop knows the challenge: press brake operation may look simple, but it is a high-risk area for workplace injuries. Finger crushing, hand injuries, and other accidents occur all too often.

Many factories are not unwilling to implement safety protection—the problem is that traditional protection devices can be ineffective in practice. Either they fail to provide adequate protection, resulting in frequent safety incidents, or they provide excessive protection that causes frequent machine stoppages, disrupts bending operations, and seriously affects production efficiency.

The key to solving press brake safety problems is to design protection around the actual operating logic of the machine.

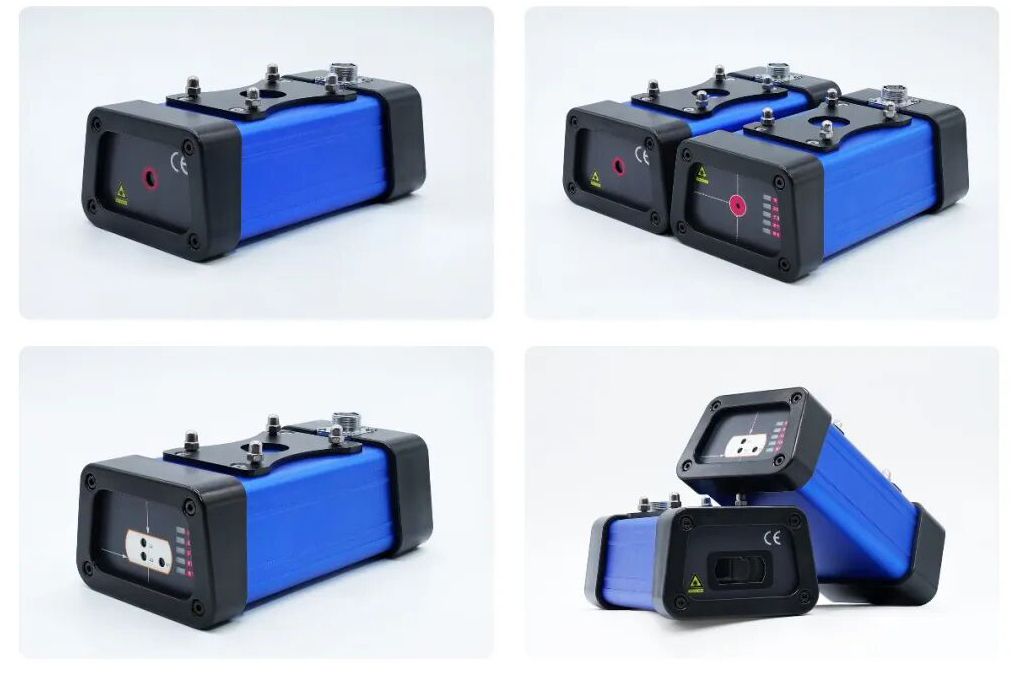

As a dedicated safety solution for sheet metal press brakes, the Press Brake Laser Protection Device is designed to work with the machine's fast-approach and slow-bending stages, achieving full protection during hazardous movement without slowing down normal production.

01 Understanding the Machine Means Better Protection: Designed for Two-Stage Press Brake Operation

Professionals familiar with press brake operations know that the downward movement of a press brake generally consists of two key stages: fast approach and slow bending (working stroke).

The risk levels of these two stages are fundamentally different. This difference is also one of the main reasons why conventional safety devices may either fail to provide effective protection or cause unnecessary machine stoppages.

Fast Approach Stage — High-Risk Protection Zone

During the fast approach stage, the press brake ram moves downward at high speed, with significant inertia and impact force. The area beneath the upper die is therefore a high-risk zone.

Operators may accidentally place their hands in the danger area while retrieving material, adjusting sheet metal, or clearing scrap. If they cannot react in time, hand crushing injuries may occur. Many press brake-related workplace injuries occur during this stage.

The core protection function of the Press Brake Laser Protection Device is therefore focused on the entire fast approach stage.

The device uses a high-precision laser to create a dynamic, invisible safety zone that moves synchronously with the upper ram and continuously monitors the hazardous area beneath the die.

If a hand or foreign object enters the protected area, the system triggers a machine stop within milliseconds, immediately interrupting machine operation and preventing accidents caused by high-speed downward movement.

This provides fast, responsive protection with minimal delay and reliable detection.

Slow Bending / Working Stroke — Protection Released for Normal Operation

When the ram reaches the preset working point, the press brake enters the slow bending stage.

At this point, the ram moves at a significantly lower speed, with smoother movement and reduced impact force. The operational risk is greatly reduced, while this stage becomes the core process for pressing the sheet metal against the die and completing the bending operation.

At this point, the Press Brake Laser Protection Device automatically releases the safety lock and removes the machine-stop restriction.

The press brake can then continue normal bending and forming operations without requiring the operator to manually disable the protection system or adjust the settings.

This prevents the safety system from interfering with normal processing while maintaining bending accuracy and production speed.

02 Intelligent, Differentiated Protection: Say Goodbye to the “One-Size-Fits-All” Approach

Many conventional safety devices on the market use an always-on protection mode, keeping the machine locked whenever the detection zone is interrupted.

Although this may provide continuous protection, it can also cause frequent interruptions during normal bending operations, significantly reducing production efficiency.

As a result, some factories may even choose to remove or bypass safety devices in order to maintain productivity, creating much greater safety risks.

A professional Press Brake Protection Device instead distinguishes between hazardous movement and normal working movement, providing intelligent, stage-based protection.

● Full Protection During High-Risk Fast Approach

Continuous monitoring is maintained throughout the high-speed downward movement, establishing a strong safety barrier, reducing the risk of workplace injuries, and helping companies avoid the associated safety and financial losses.

● Automatic Release During Safe Working Stroke

During the actual bending process, the protection is automatically released, allowing the machine to operate smoothly and ensuring that bending and forming operations proceed normally without reducing production capacity or extending processing time.

This dedicated protection logic is compatible with various sheet metal bending processes and achieves a practical balance between workplace safety and production efficiency.

It solves the common dilemma of “safety protection slows production” versus “prioritizing production at the expense of safety.”

03 An Essential Factory Upgrade: Reduce High-Risk Exposure at Low Cost

For sheet metal processing companies, press brake safety protection should not be treated as an optional accessory—it is an essential safety requirement.

A single press brake workplace injury can result in significant medical and compensation costs. It may also cause production downtime, reduced capacity, regulatory penalties, and reputational damage to the company.

Installing a Press Brake Protection Device does not require complicated equipment modifications. It can be adapted to various new and existing press brake machines, while offering convenient installation and reliable operation.

With its intelligent protection strategy based on the difference between fast and slow machine movements, the system can:

Protect operator safety

Significantly reduce the risk of workplace injuries

Maintain normal production efficiency

Avoid unnecessary machine stoppages

Help factories maintain stable production and safety compliance

Safety is the bottom line of production; efficiency is the foundation of profitability.

A reliable Press Brake Laser Protection Device helps companies protect their safety boundaries while maintaining production efficiency—making it an effective safety solution for reducing risk and improving productivity in sheet metal bending workshops.
