In today's era of rapid industrial automation and intelligent equipment development, equipment safety has become a core concern for manufacturers and users alike. Shandong Moncee Sensor Co., Ltd., a high-tech enterprise specializing in the research, development, production, and sales of intelligent safety sensors, provides reliable safety protection solutions for multiple industries including automotive manufacturing, smart logistics, and new energy sectors through its profound expertise in safety edge strips.

Company Strength: Technology-Driven, Quality-Assured

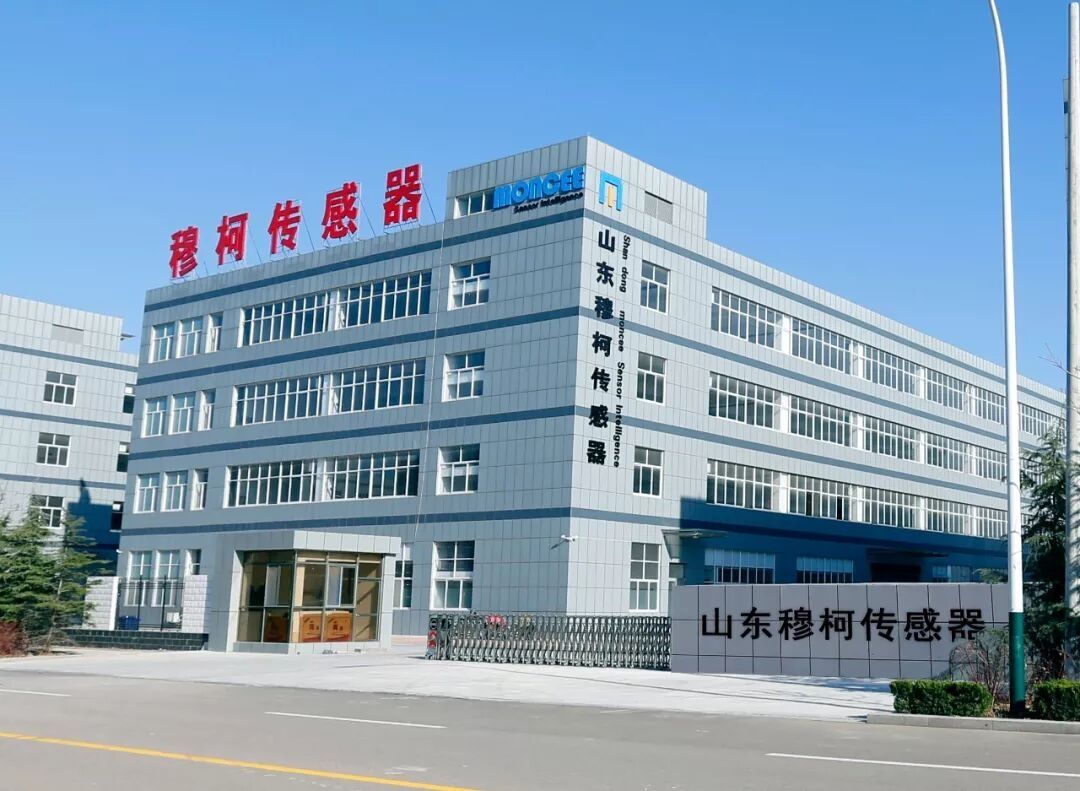

Established in 2013, Shandong Moncee Sensor Co., Ltd. was recognized as a "High-Tech Enterprise" in 2017 and successfully listed on the Qilu Equity Exchange Center. The company has subsequently obtained multiple certifications including "Technology-Based Small and Medium Enterprise," "Weifang Municipal Engineering Laboratory," and "Enterprise Technology Center," demonstrating its technical capabilities and industry standing in the safety sensor field.

The company primarily develops and produces a full range of safety products including safety mat sensors, safety light curtain sensors, bending machine laser protection devices, laser radar, and safety edge strips. It has provided comprehensive safety sensor solutions to numerous well-known enterprises such as Haier, Baosteel Group, Dongfeng Motor, and Beijing Hyundai.

Product Advantages: Diverse Configurations, Precise Adaptation

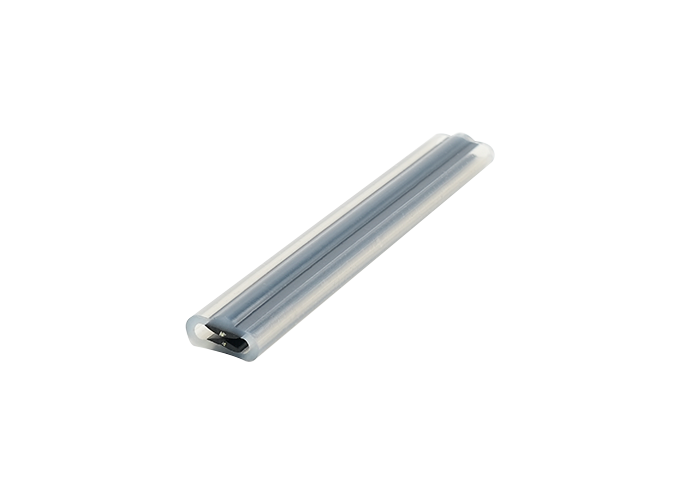

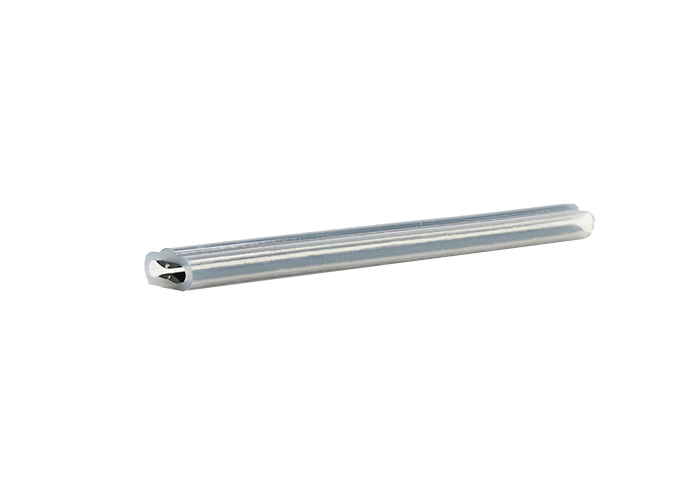

Moncee safety edge strips feature a flexible bendable design that can be fixed on the edges of moving components with potential crushing and shearing hazards, such as automated guided vehicles, logistics AGVs, AMRs, tire molding machines, elevators, safety doors, machine tool worktables, and electric doors, providing immediate protection.

Key Features:

· Diverse Section Options:Available in multiple section sizes including 25×45mm, 40×60mm, 54×56mm, meeting different trigger distance (2-13mm) and trigger force (5-50N) requirements

· Premium Material Formulation:Housing made of EPDM or TPE materials with excellent weather resistance and anti-aging properties, operating temperature range from -30°C to +85°C

· High Reliability Design:20,000 click cycles, waterproof rating IP65, ensuring long-term stable operation

· Flexible Customization:Single unit length up to 8 meters, series connection supports up to 6 units, cable length customizable according to actual needs

Working Principle: Intelligent Sensing, Rapid Response

The safety edge strip operates based on resistance change detection technology: when the outermost insulation layer of the edge strip contacts a person or obstacle during equipment movement, it compresses the internal conductive layer, causing the upper and lower conductive layers separated by a specific distance to contact. This resistance change sends an effective signal to the controller, which immediately stops the equipment movement or executes a return action upon receiving the signal.

With proper installation, even if the outer jacket of the edge strip sensor is partially damaged, as long as the conductive strip remains intact, the entire system can still function normally, ensuring safety reliability.

Application Fields: Wide Coverage, Precise Service

Moncee safety edge strips have been widely applied in the following areas:

· Smart Logistics:AGV vehicle series, automated warehouses, material handling equipment

· Automotive Manufacturing:Safety protection for middle doors, tailgates, luggage compartments, and sunroofs

· Industrial Automation:Welding robots, rubber machinery, assembly machinery, packaging machines

· Heavy Machinery:Pressing machinery, pressure machinery, material handling equipment

· Building Facilities:Sliding doors, movable partitions, automatic sliding doors, electric doors, etc.

Safety Buffers: Flexible Protection, Multiple Safeguards

In addition to standard safety edge strips, Moncee also offers safety buffer product series suitable for automated guided vehicles (AGVs), automated warehouses, elevators, and other scenarios. The products feature compressible foam plastic cores, capable of withstanding ordinary mechanical impacts. Surface materials are available in fabric, TPE, leather, fireproof materials, and more, with maximum response time under 200ms, ensuring rapid equipment stoppage upon collision.

Quality Commitment: Strict Standards, Trustworthy

Moncee safety edge strip products have passed multiple international certifications, complying with CE safety standards. The company strictly implements quality management systems, with every process from raw material procurement to finished product shipment undergoing rigorous testing to ensure stable and reliable product performance.

Professional Services: Customized Solutions, Full Support

Moncee Sensors provides comprehensive services from product selection and technical consultation to installation guidance. The company is equipped with a professional technical team that can provide customized solutions according to specific customer requirements, including special section design, material formulation optimization, cable length customization, etc., ensuring perfect product-equipment matching.

Conclusion: Safety Matters, Details Determine Success

On the path to pursuing equipment intelligence and efficiency, safety remains an unbreachable bottom line. Shandong Moncee Sensor Co., Ltd. will continue to uphold the philosophy of "dedicated to industrial safety protection sensors," driven by technological innovation and oriented toward customer needs, providing safer and more reliable products and services to global customers.
