Shandong Muke Sensor's core products cover a full range of industrial safety sensing equipment, including safety light curtains, bending machine laser protection devices, and safety carpets. They are widely used in automotive manufacturing, white goods, textiles, packaging, new energy, stamping and forging, and non-standard automation fields, providing customized safety sensing solutions for customers worldwide.
Industry Advantages of the Product 1. Compliant with CE and other authoritative certifications, meeting international industrial safety regulations and fulfilling compliance requirements across diverse operational scenarios. 2. A single unit covers most areas around machinery, featuring 16 independently configurable obstacle-detection zones that can be tailored to different warning ranges based on specific application needs. 3. Operates reliably under intense outdoor sunlight or high-intensity indoor workshop lighting, with real-time detection of dynamic human movement. 4. Small footprint supports multi-angle installation (horizontal, vertical, etc.), and multiple durable, vibration-resistant mounting brackets are available. 5. Deployed across a wide range of rigorous environments, including：Industrial production floors、Warehouse and logistics AGV navigation、Autonomous delivery robots、Robotic arm safety、guarding、Intelligent inspection machines etc. |

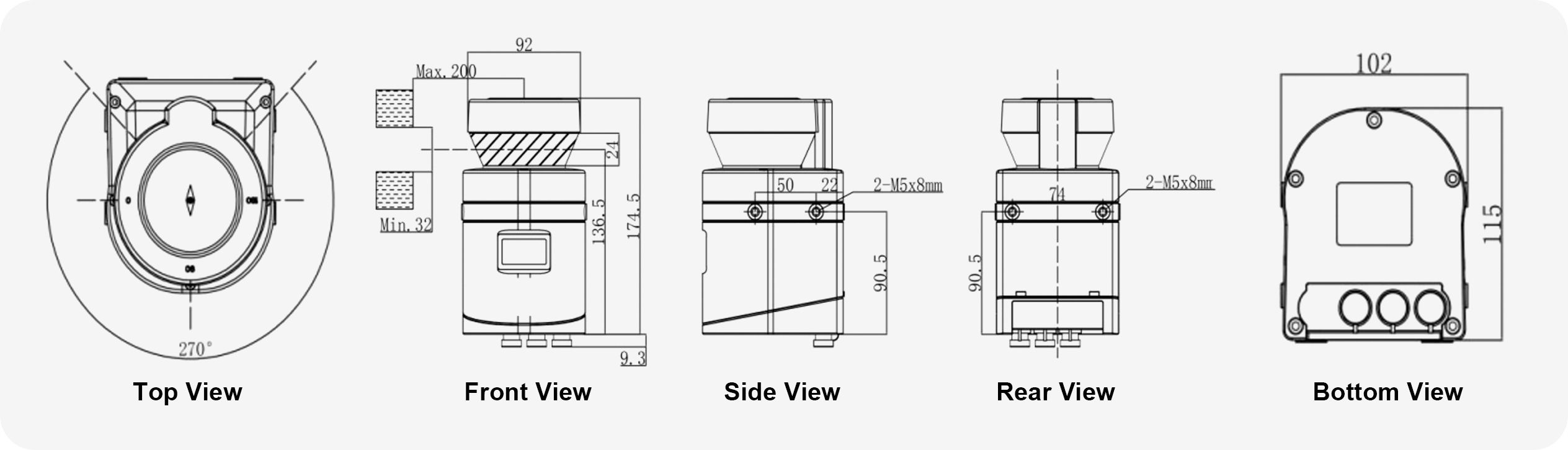

Detailed Product Specifications ◉ Scanning Range: 270° (-45° to 225°) ◉ Housing Dimensions: 174.5 × 115 × 102 mm ◉ Scanning Frequency: 15 Hz ◉ Angular Resolution: 0.1° at 15 Hz; 0.25° at 30 Hz; 0.5° at 60 Hz ◉ Echo Processing: Multi-echo Intelligent Processing ◉ Measurement Range: 0 to 120 m (80 m at 10% reflectivity) ◉ Laser Wavelength: 905 nm ◉ Measurement Accuracy: ±3 cm ◉ Operating Temperature: -40°C to 60°C ◉ Scanning Frequency: 25 to 100 Hz ◉ Protection Rating: IP67 (Custom models available up to IP68) ◉ Laser Class: Complies with GB7247.1-2012 Class 1 laser eye safety requirements ◉ Housing Material: Aluminum Alloy ◉ Power Supply: DC 24 V ±10% |
Our Strengths
We are Shandong Moncee — a modern, integrated manufacturing enterprise specializing in R&D, design, production, sales, and after-sales service, with our own production facility spanning 20,000 square meters.

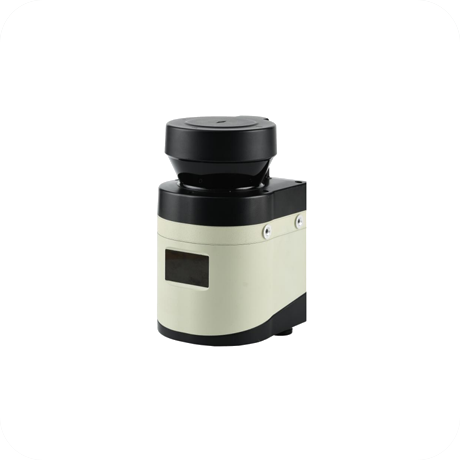

The MILS-F31C LiDAR delivers customized, cost-effective solutions tailored to meet a wide range of application requirements. Whether you need compact data for environmental monitoring and object detection, greater flexibility for industrial automation and building control systems, or reliable perception for mobile platforms such as Autonomous Mobile Robots (AMRs), service robots, and ground transportation vehicles — the MILS-F31C is engineered to perform.
Moreover, we offer specialized variants designed for safety-critical applications, including personnel protection and safe navigation in demanding industrial environments. As an industry pioneer, we have successfully developed a programmable 2D LiDAR that enables highly personalized functionality and distinctive competitive advantages.
|
|
|
| Large Operational Detection Range Capable of monitoring work areas of varying sizes, offering a scanning range of up to 25 m, with angular resolution and a beam angle of up to 270° | Certified to Authoritative Standards Certified with multiple authoritative certifications including CE, complying with international industrial safety standards and meeting the compliance requirements of diverse operational scenarios | Own Manufacturing Facility Our in-house production facility spans 20,000 m², enabling comprehensive customization services. We provide a one-year warranty, dedicated one-on-one VIP account management, and draw on 11 years of brand experience. Every product undergoes up to 20 rigorous quality inspection steps |
Fast Dispatch Upon Order
