In sheet metal fabrication workshops, the press brake is an indispensable piece of core equipment. By applying powerful forming force, it shapes metal sheets into the required forms and enables efficient production. At the same time, the high-speed operation of a press brake can present significant safety hazards—particularly during the fast-down stage, when the accidental entry of a hand, body part, or foreign object into the hazardous area can result in serious accidents.

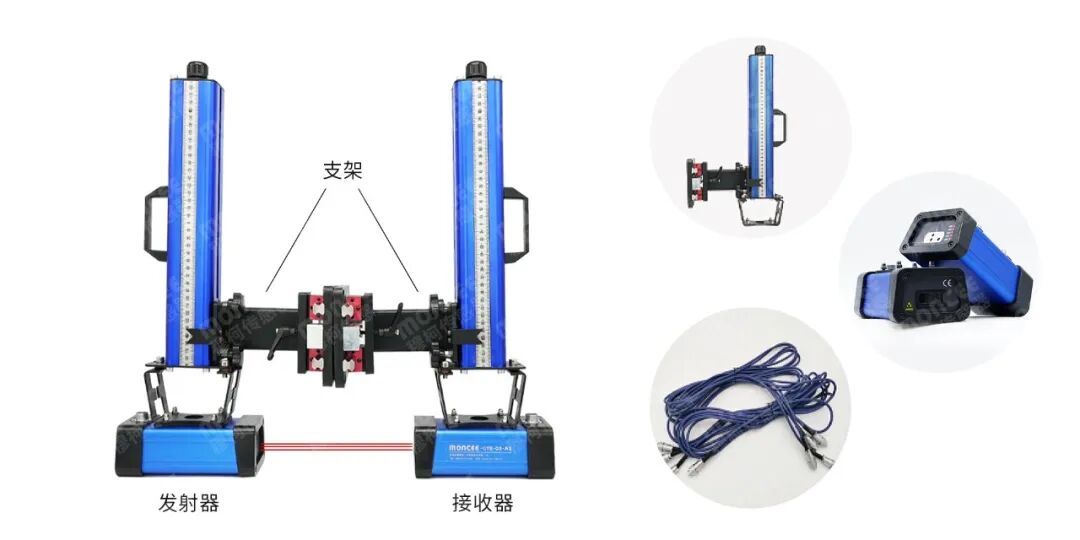

To protect operators and reduce production risks, a key safety device has been developed specifically for this application: the Press Brake Laser Protection System, also commonly known as a press brake safety protection device or press brake light curtain.

Today, let's take a closer look at the key functions and operating logic of this “safety guardian.”

1. What Is a Press Brake Laser Protection System?

As its name suggests, this is a dedicated safety protection device specifically designed for press brake applications. Its core technology is based on the principle of laser light-grid protection.

Rather than being a generic safety device, it is designed around the operating characteristics of press brakes. It can match the machine's movement trajectory and operating sequence to provide application-specific protection when needed.

Unlike conventional physical safety guards, a press brake laser protection system uses non-contact protection. Laser beams create an invisible “safety barrier” around the hazardous area.

This design does not interfere with the normal operating space of the press brake while providing continuous safety monitoring, achieving a balance between operator safety and production efficiency.

2. Core Function: Precise Protection Throughout the Press Brake Operating Cycle

The primary purpose of a press brake laser protection system is to establish a reliable safety barrier around the press brake, with its protection focused primarily on the fast-down stage.

During operation, a press brake typically goes through a complete cycle:

Fast Down → Slow Down (Working Stroke) → Bending/Forming → Return Stroke

Among these stages, the fast-down stage presents a particularly high safety risk because the machine operates at high speed and generates substantial mechanical force.

During this stage, the laser protection system remains active. The laser beams create a protective monitoring field that continuously monitors the hazardous area.

If an object—such as an operator's hand or a tool—enters the protected area, the system immediately generates a safety signal and commands the press brake to perform an emergency stop, helping prevent accidents at their source.

When the press brake completes its fast-down movement and enters the slow-down/working stroke, the protection system automatically releases the corresponding protection restriction.

This design is based on the characteristics of the slow-down stage: the machine operates at a lower speed with more controlled pressure. At this point, normal bending operations need to proceed without unnecessary interference, helping prevent the safety system from affecting forming accuracy.

After the bending or box-forming operation is completed, the press brake enters its return stroke, during which the laser protection system becomes active again to continue protecting the operator.

3. Why Is It Necessary? Dual Protection for Safety and Productivity

For manufacturers, installing a press brake laser protection system should not be viewed simply as an “additional cost.” It is an essential investment in production safety and operational stability.

From a safety perspective

The system can help reduce the risk of operator injuries and protect workers while also helping companies mitigate the potential legal and financial consequences associated with workplace safety incidents.

From an efficiency perspective

The non-contact protection design does not obstruct the normal operating process of the press brake. Operators do not need to repeatedly remove or reinstall physical guards, allowing bending operations to proceed efficiently and reducing production interruptions caused by inadequate or inconvenient safety protection.

Safety and Efficiency Can Go Hand in Hand

In summary, the Press Brake Laser Protection System acts as a “safety guardian” for press brake operations. By matching its protection logic to the machine's operating cycle, it achieves an effective balance between safety and productivity.

While production efficiency is important, maintaining a strong safety baseline is even more essential. Equipping a press brake with a qualified laser protection system is a fundamental responsibility toward both employees and the company.

Would you like to learn more about press brake safety protection? Feel free to send us your inquiry! If you find this information useful, don't forget to share it with your industry colleagues.

Tip:When selecting a press brake laser protection system, prioritize products that comply with applicable industry safety standards and are compatible with your specific press brake model. Regular inspection and maintenance should also be carried out to ensure that the protection functions remain stable and effective.
